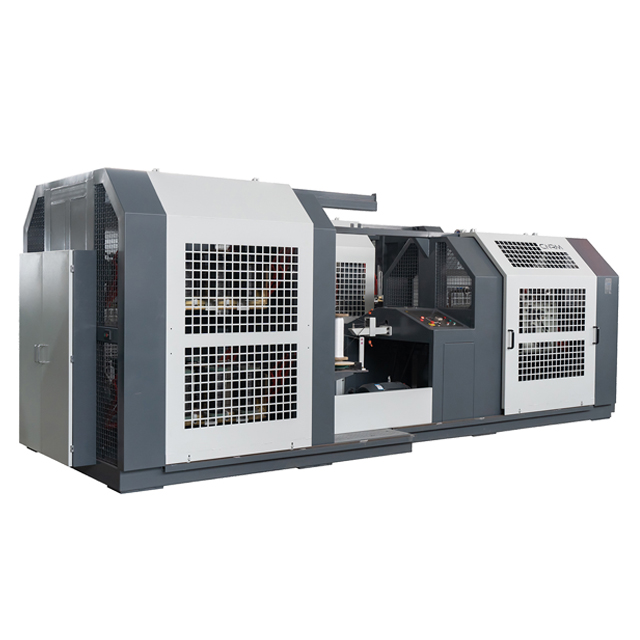

HDTM-M33 Rope Making Machine

Quantity:


CNRM  HDTM rope machine


CNRM HDTM combined strander and rope-layer

For production of finished coiled rope from natural and synthetic fiber yarns

Three-strand and four-strand models

From start to finish in one continuous operation

Extremely high output



Performance & advantages

· High productivity

· Sprocket drive

· Rigid construction

· Direct coiling head winding

· With digital length counter meter

· Auto stop after yarn breakage to control wastage

· Door sensor, protective door with steel wire mesh

· Low noise level, Low maintenance, easy operation system

· Surface of parts are bluing and with plating treatment

· Thermal refining for shaft parts, quenching treatment for gear and sprocket wheel

HDTM-M33


Technical data

Rope range:

Φ3-10mm

Lay range:

15-38mm

Rope lay:

S or Z

Take-up, coiling head:

Φ480mm, traverse 265mm, barrel Φ138mm

Take-up, max. Weight:

Polypropylene 25kg

Pay-off packages

M33-3

M33-4

3x8 , max.Φ175X300mm traverse

4X8,max.Φ175X300 mm traverse

3x6 , max.Φ225X300mm traverse

4X6,max.Φ225X300 mm traverse



Take-up capacity



 Production capacity


 Coiling head



  Output(24 hours)

Φ4mm

    3572m


Φ4mm

    140kg

Φ6mm

    1563m


Φ6mm

    472kg

Φ8mm

     926m


Φ8mm

    1118kg

Φ10mm

     595m


Φ10mm

    2185kg



Examples based on three -strand polypropylene rope. Lay length: medium. Efficiency rate: 100%. 24 hour’s production


HDTM-M33 Rope Making Machine-2
