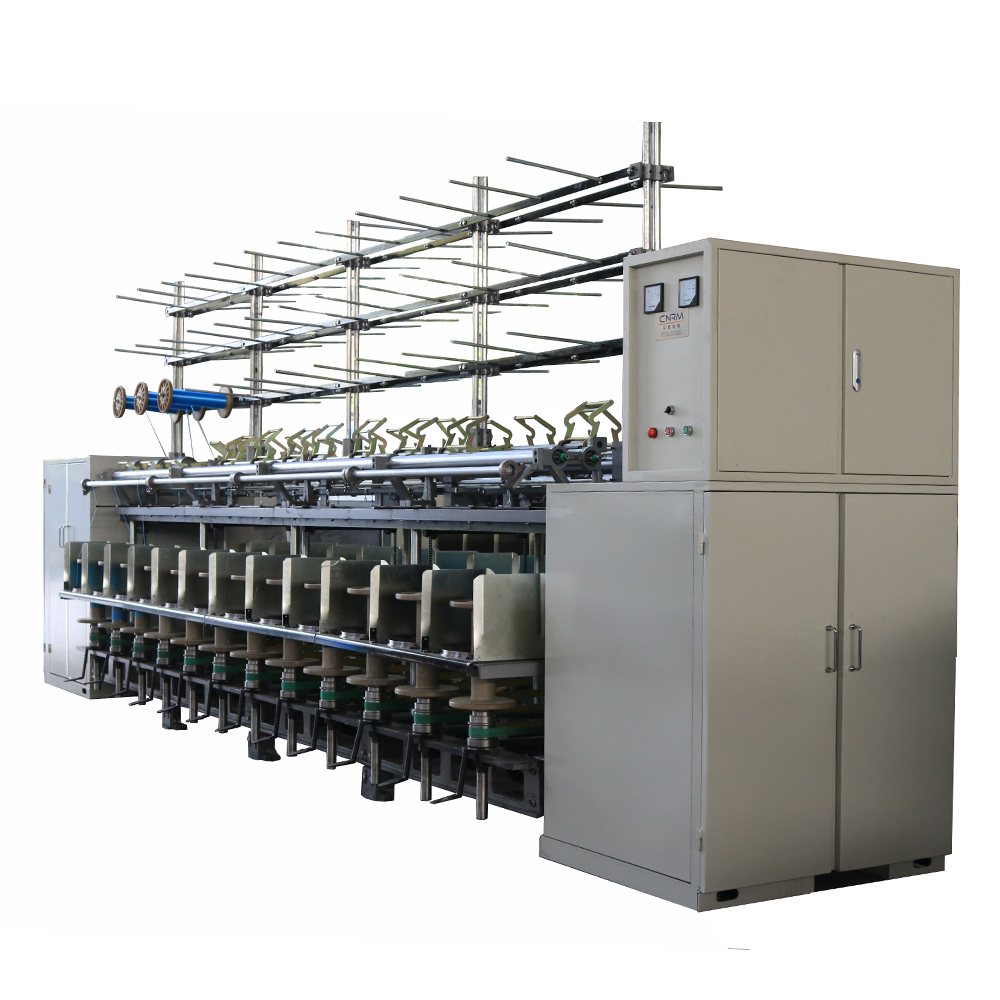

HDRT-723 Ring Twister

Quantity:


HDRT-723



Model

HDRT-723

Quantity of Spindle

6 spindles/group. Max.54 spindles

Lifting movement of traveler ring

300mm

Speed of Spindle

1800-2100rpm

Dia of roller

57mm

Distance of Spindle

375mm

Dia of Traveler Ring

254mm

Twisting Direction

Z or S

Suitable scope

21 counts 5 strands~180 strands yarn

850D~15000D fiber

36 tex 21~90 strands twisting or twine


HDRT-723 Ring Twister


The product has wide application scopes,modern design,big take-up amount,high speed.It is easy to operate and maintain,low noise and power consumption.It's a high efficiency and output machine with twisting and stranding. It has the mechanism with planetary direction exchanging ,stranding and twisting of the twine can be finished in one time.It's suitable for primary twisting and re-twisting of all kinds of PE twine,PP twine,PET twine,nylon twine,cotton twine and twisted ropes in small size.



Performance & Advantages

· Wide applied scope

· AC Invertor & Motor

· Big winding capacity

· Longer life for spare part

· Strong suitability for material

· Lifting mechanism with planetary

· Anti-converting turning device for roller

· Mechanism of twisting direction changing

· Two procedure of twine can be finished in one time

· Latest technology used to force the melt into the die very effectively
